ClearBlue Quickstart Guide
Thanks for choosing ClearBlue! We’ll get you going in no time.
IMPORTANT: Please read the manual for important safety and setup instructions. You can download a digital copy here.
Warranty
Don’t forgot to register your warranty. Once you register, the length of your warranty doubles.
Installation and Setup
1) Fill the pool or hot tub with a pre-filter to remove unwanted metals, sediments and odors (available from your ClearBlue retailer).
2) Make sure water is properly balanced:
pH: 7.2 – 7.8
Alkalinity: 80 – 120ppm
Calcium Hardness: 200 – 400ppm
Total Dissolved Solids (TDS): 500 – 2,000ppm
Stabilizer (Cyanuric Acid): 30 – 50ppm
Phosphates: 0 – 200ppb

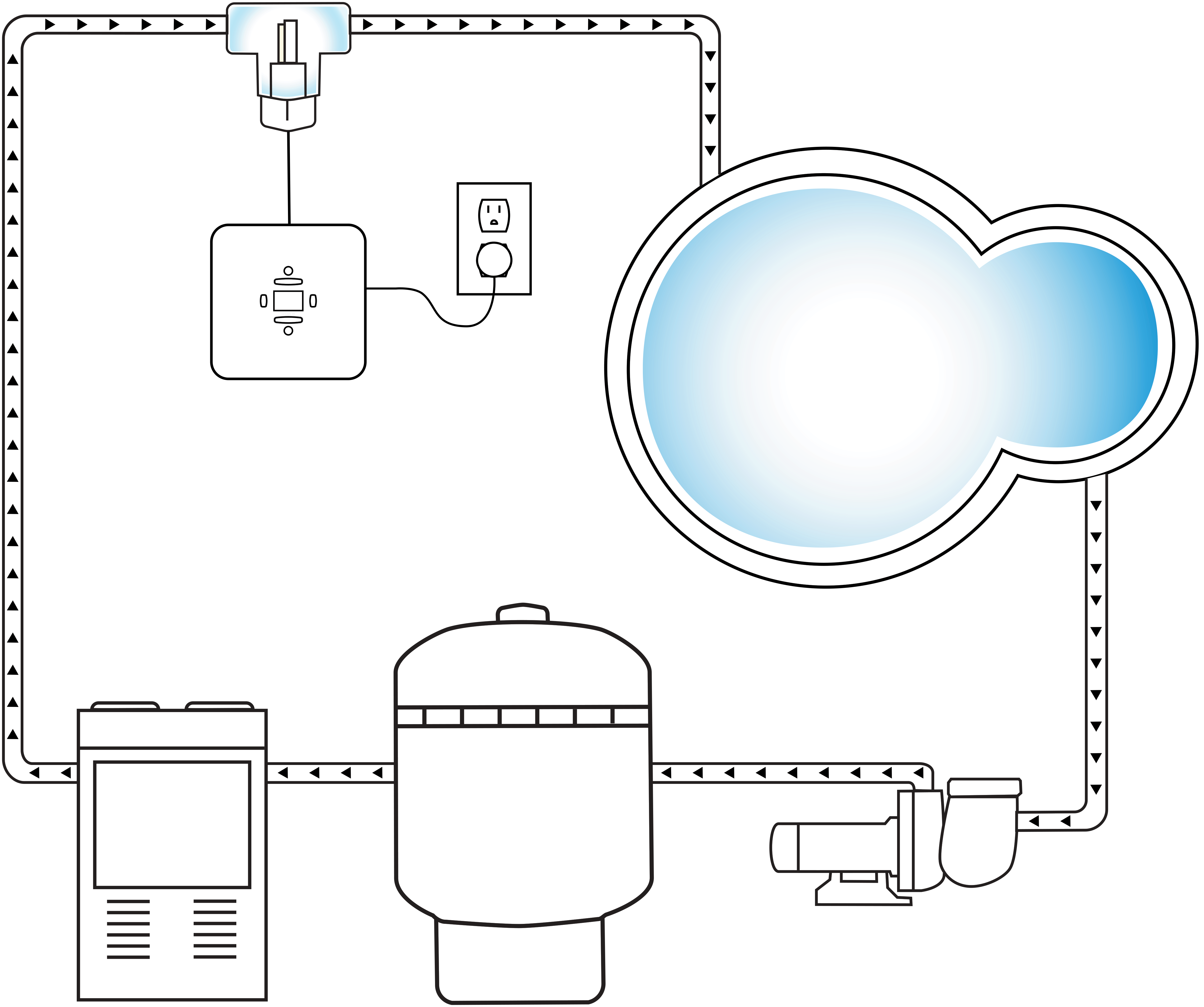

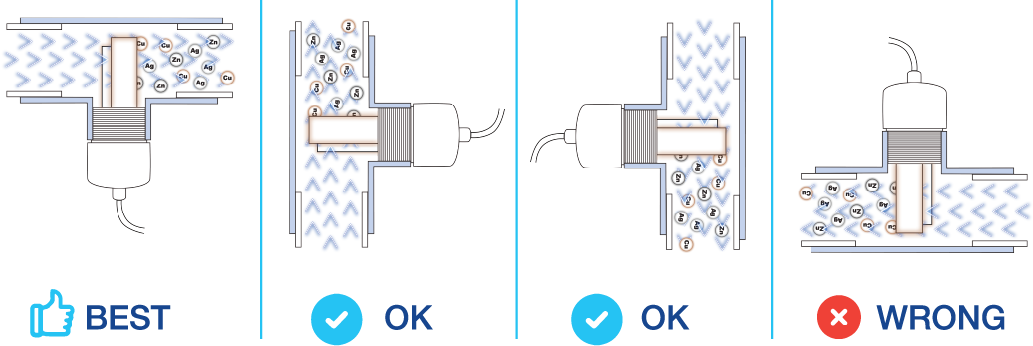

3) Install the tee on the return line of the plumbing, after the pump, filter and heater and before the chlorinator or salt cell. Make sure it is oriented correctly. Make sure the cell cable reaches the controller.
Installation video for inground pools
Installation video for aboveground pools
Installation video for hot tubs
4) Mount the controller. It can be mounted with velcro or using the two screw mounts. If you use velcro, make sure to place it over the screw mounts and not over the model information. This information will be needed for support and warranty claims. Velcro will stick to stucco, brick, wood or anything flat or textured but you need to press it in place for 30 seconds. Make sure the cell cable reaches the controller.
5) Plug in or wire up the controller. For 240V wiring, cut off the plug and wire to the line side of the panel or timer. There is nothing to switch on the controller for 240V service – it is auto sensing. The controller should always have power, even when the pump is not running.
Maintenance
The ClearBlue system will do most of the work for you. Once the copper level has reached 0.2ppm, you can simply add one chlorine/bromine tablet per week (or maintain 0.5-1ppm chlorine/bromine) and shock once per week. You can use either chlorine or non-chlorine shock.
It is important to test the water parameters weekly and adjust if necessary:
pH: 7.2 – 7.8
Alkalinity: 80 – 120ppm
Calcium Hardness: 200 – 400ppm
Chlorine/bromine: 0.5 – 1ppm
Stabilizer (Cyanuric Acid): 30 – 50ppm
Phosphates: 0 – 200ppb
Copper: 0.2 – 0.4ppm
Take your water to your local pool store for testing, or try our Mineral Pool test strips at home (available from your ClearBlue retailer).
